AKG PT45 (Band D - ISM, 863.1 - 864.9 MHz) trådlös mottagare
Allmänt

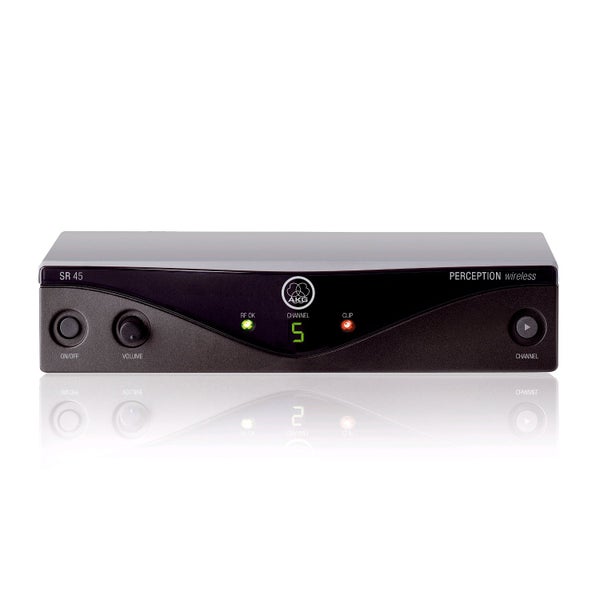

The AKG SR45 is a wireless receiver from the popular Perception Wireless series by AKG. It communicates via band D (ISM) with the HT45 wireless handheld or PT45 bodypack from the same series. The AKG SR45 has an internal antenna and a range of 30 metres. The wireless receiver can easily be set up. This makes it ideal for situations where there isn't a sound engineer (in churches, clubs, hotels, rehearsal spaces, etc.).
AKG SR45: frequencies and setting up
Frequency band D, also known as ISM, runs from 863.1 to 864.9 MHz. This frequency can be used throughout the whole of Europe, without any problems. An overview of the allowed frequencies per country can be found under 'downloads'. The SR45 has eight fixed frequencies via which it can communicate with the transmitter. Thanks to super simple controls, you will be able to attune the transmitter and receiver to one another in no time whatsoever.
Tips eller kommentarer om den här produkten
Obs:
- Perceptions trådlösa serie är nästa band D (ISM, 863.1 - 864.9 MHz) och finns också tillgängligt för andra frekvenser. Under nedladdningar finns en översikt av frekvenser per land.
Specifikationer
Produktfunktioner
- 19 tums rackformat ej tillämpbart
- Automatisk frekvenssökning nej
- Batteritid (c:a) ej tillämpbart
- Energikälla el
- Frekvensband AKG D (863,100 - 864,900 MHz)
- Inbyggd EQ nej
- Kanal ISM (863 - 865 MHz)
- Växlingsbara frekvenser Ja
- Typ frekvensband 800 - 899 MHz
- Utgångsanslutning jack (6,3 mm), XLR (3-pins)
Vikt och mått inkluderar förpackning
- Vikt (inkl. förpackning) 500 gr
- Mått (inkl. förpackning) 36,0 x 24,0 x 7,0 cm
Produktspecifikationer
- wireless receiver from the Perception series
- frequency band D (ISM): 863.1 - 864.9 MHz
- recommended simultaneous channels: 5
- number of selectable frequencies: 8
- fixed frequencies
- range: 30 m
- frequency range audio: 40 Hz - 20 kHz
- signal/noise ratio± 105 dBA
- THD @ 1 kHz: 0.8 %
- operating temperature: -10 to 55 degrees Celsius
- radio sensitivity: -100 dBm
- 1/2 racksize (9.5 inch)
- height: 1U
- audio output balanced: 1x 3-pin XLR Male
- audio output unbalanced: 6.35mm TS jack female
- power supply: 12 V DC (adapter included)
- synthetic housing
- colour: black
- dimensions: 200 x 150 x 44 mm
- weight: 360 grams
