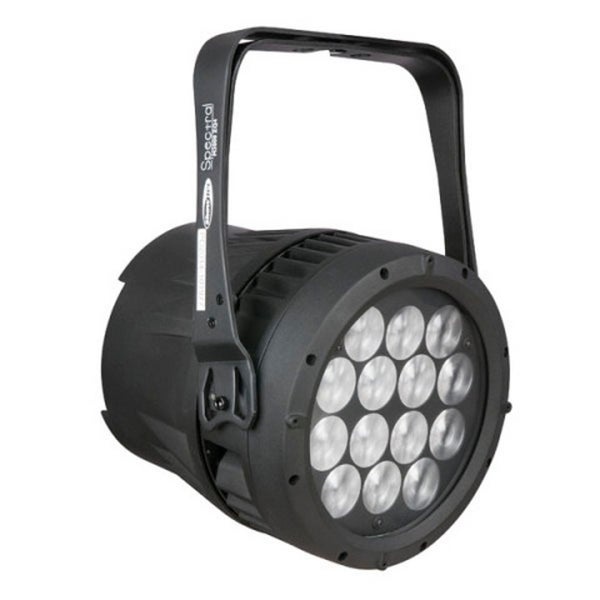

Showtec Spectral M3000 Q4 LED par IP-20 rating
Allmänt
The Showtec M3000 Q4 Tour is one of the largest models from the Spectral series. It's a highly versatile LED spotlight that can be used for all sorts of applications. From theatre lighting to photo shoots or discotheques, this multifunctional LED will come in handy nearly anywhere.
Features
The unit features fourteen intensive Quad LEDs in the colours red, green, blue and white, so that the user can create wonderful colour patterns. This unit's colour mixing is also outstanding! When the Spectral M3000 is operated via DMX, you can choose one colour or let the device alternate colours automatically. Furthermore, you can adjust the beam angle of the LED - let it range from a very narrow beam of 8 degrees to a wash effect! Please note: this unit is only suited for indoor use!
Design
The fixture only weighs 8.4 kg and it has relatively compact dimensions, especially considering the power of this unit! It features a double, adjustable fastening bracket, so that it can be positioned on the floor, or mounted in a truss system. The housing is made from die-cast aluminium and it's finished with a black powder coating. At the rear of the device, DMX and PowerCon connectors can be found. The Showtec Spectral M3000 Q4 is a highly complete unit that is very versatile.
Specifikationer
Produktfunktioner
- Antal DMX-kanaler 3, 4, 5, 6, 7, 12, 17
- Montering dubbel
- Färger ljuskälla röd, grön, blå, vit
- Musikstyrd nej
Vikt och mått inkluderar förpackning
- Vikt (inkl. förpackning) 9,0 kg
- Mått (inkl. förpackning) 31,5 x 30,0 x 28,0 cm
Produktspecifikationer
- RGBW LED spotlight
- light production: 3,900+ lumen
- lux at 2 metres: 8 degrees, 63700+
- LEDs: 14x 4-in-1 RGBW
- power consumption: 700 mA
- refresh rate: 900-120 Hz
- dimmer: 0 to 100%
- strobe: 0 to 20 Hz
- beam angle: 8 to 45 degrees
- on-board 4-digit display
- modes: auto, run, DMX, personality, edit, set key, cal, WT, RGBW, zoom
- DMX channels: 3, 4, 5 , 6 , 7, 12 or 17
- input voltage: 100 – 240 VAC, 50/60 Hz
- energy consumption: 195 watts maximum
- dimensions: 280 x 300 x 315 mm
- weight: 8.4 kg
- IP-rating: IP-20
- housing:
- die-cast aluminium
- powder coating finish
- lens plate of reinforced glass
- connectors: PowerCon in and out, XLR 3 and 5-pin
- cooling: convection
