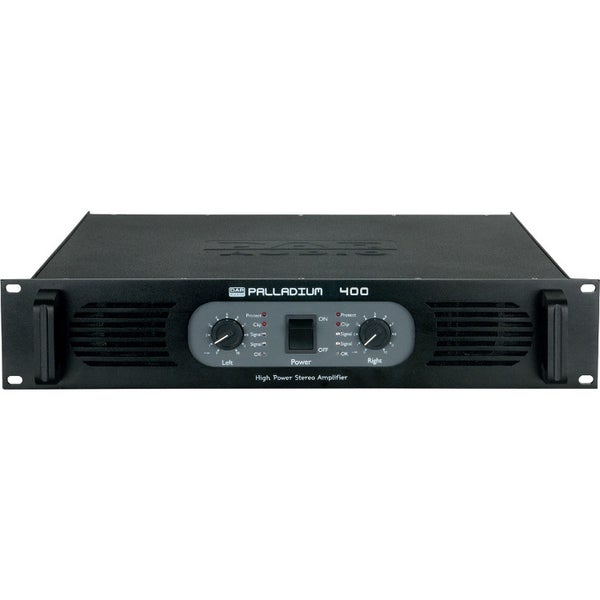

DAP Palladium P-400 Black Series PA-förstärkare
Allmänt
After having sold over 50,000 Palladium amplifiers, DAP Audio decided that it was high time to give this series a facelift. The result is the Black Series Palladium. This P-400 stereo PA amplifier is the smallest unit in the series when it comes to power. It has the same specifications as its vintage silver brother, but is black. The P-400 delivers 2x 100 watts of stereo power at 8 ohms and 2x 200 watts at 4 ohms. In bridged mode, if even offers 400 watts of power! This is more than enough for small fixed or mobile audio installations.
Characteristics of the DAP P-400 Black Series
All of this power needs to be managed in a reliable and safe way, of course. Which is why the P-400 amplifier is equipped with security mechanisms against, for instance, short-circuiting and overheating. When it comes to connectors, this unit is also highly complete. It has an XLR as well as TRS jack input per channel. For outputs, the P-400 lets you choose between high-quality lockable speaker connectors or the more traditional wire clamps. This way, you can easily connect nearly any speaker and other sound source.
The proven quality of the Palladium amplifier
Who is not familiar with the DAP Audio Palladium series? Many have grown up around them, many have started their musical career with them and are still working with them. Just like the silver-coloured Vintage Series, the Palladium Black Series consists of seven amplifiers, varying in power from 400 watts to a whopping 2,000 watts! They all have one thing in common: proven quality and an extremely attractive price.
Specifikationer
Produktfunktioner
- 19 tums rackformat 2 U
- 2 ohm kompatibel nej
- Antal kanaler förstärkare 2
- Ljudslinga utgång nej
- Stalläge Ja
- Kontakt ingång jack (6,3 mm), XLR
- Inbyggt filter inget
- Inbyggda skydd överbelastning, termiskt , kortslutning, fyrkantsvågor/likspänning, clip indikator
- Inbyggd DSP-processor nej
- Kylning fläkt
- RMS effekt (4 ohm) per kanal 200 - 249 Watt
- RMS effekt (8 ohm) per kanal 150 - 199 Watt
- Förstärkarklass AB
- Förstärkarutgång låsbar högtalaranslutning, trådklämma
- Försedd med crossover nej
Vikt och mått inkluderar förpackning
- Vikt (inkl. förpackning) 15,4 kg
- Mått (inkl. förpackning) 60,0 x 60,0 x 20,0 cm
Produktspecifikationer
- powerful stereo PA amplifier
- colour: black
- affordable and reliable
- XLR and jack inputs
- lockable speaker connectors and wire-clamp outputs
- stereo mode: 2x 100W RMS at 8 ohms, 2x 200W RMS at 4 ohms
- bridged mode: 400 watts RMS at 8 ohms
- frequency range: 20 Hz to 20 kHz: +0.1 / -3 dB (1W / 8 ohms)
- THD (4 ohms), 1 kHz < 0.05% at 200 watts
- SMPER IMD < 0.01% at 100 watts (60 Hz and 7 kHz)
- slew rate > 40V/ µS
- damping factor: 300:1.1 kHz at 8 ohms
- input CMRR (1 kHz) > 60 dB
- voltage gain: 50 x standard
- input sensitivity (8 ohms): 0.775V with average use
- input impedance: 20 kOhm balanced, 10 kOhm unbalanced
- noise: -103 dB
- crosstalk < 60 dB
- inputs per channel: 1x XLR female (pin 2 +), 1x TRS jack (tip +)
- outputs per channel: 1x SpeakOn, 2x wire clamp (+ and -)
- power supply: 230 volts / 50~ 60 Hz
- maximum power consumption at 220 V: 5 A
- cooling: two DC fans with variable speed
- controls: front 2x volume control, read ground lift jumper
- LED indicators per channel, protect, clip, signal, power
- security: temperature, short-circuiting, DC voltage, subsonic, high frequency, on/off
- dimensions: 483 x 400 x 89 mm (LxWxH)
- weight: 18 kg
